Diatonic (Dulcimer-Style) Fretting – What it is, How and Why to Use It

61-013-02 Image 4Most folks are familiar, at least by sight, with the six-string guitar – whether an acoustic guitar like a Martin or an electric guitar like a Fender Stratocaster™. So it is natural that when people think of frets, or a fretboard, they think of a guitar fretboard – an evenly distributed collection of frets that get closer together the further you go up the neck towards the guitar body.

First, let’s start with what Diatonic (Dulcimer) fretting is NOT…

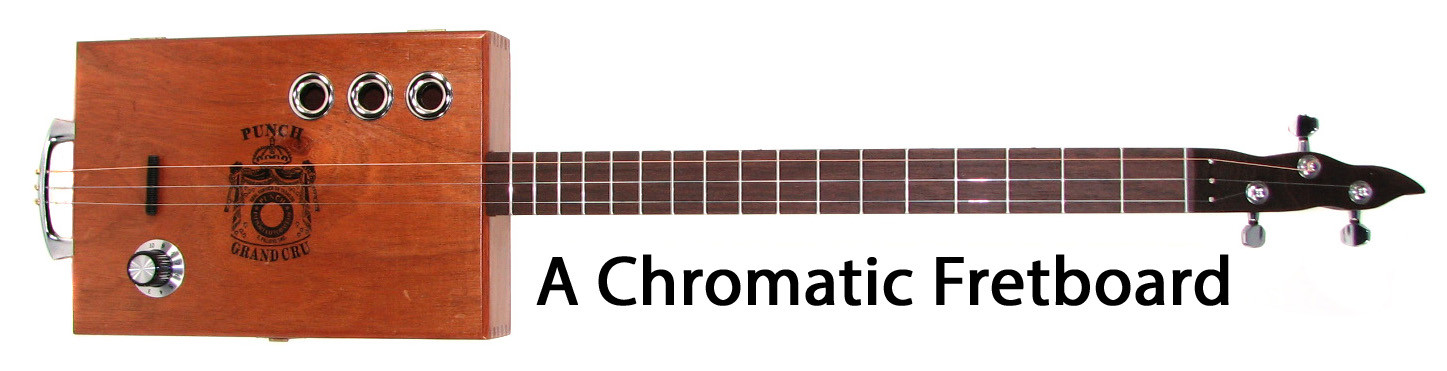

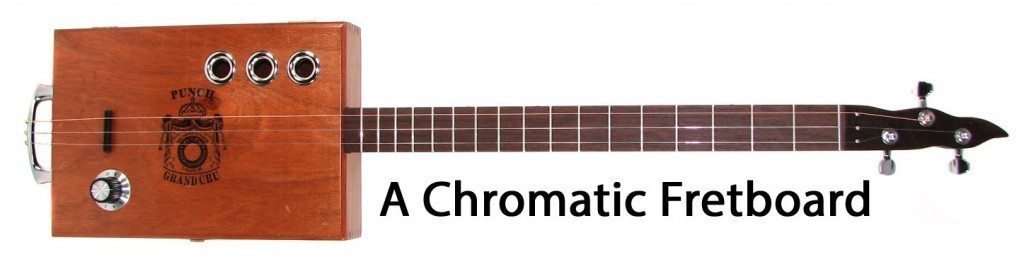

On a standard guitar, like the Fender Strat mentioned above, or the cigar box guitar in the photo below, it is said to be fretted on a chromatic scale. We are not going to get into the theory behind what that means here, but just take away this tidbit: a chromatic scale, like on a standard guitar, allows you to play every note you could possibly need for a song. All of the sharps, “natural” notes and flats. It’s all in there, and if you aren’t sure of what you are doing it is pretty easy to hit a sharp or a flat when you don’t mean to, causing potentially jarring discordance.

The trade-off is that a chromatically fretted instrument gives you the most options when playing – you can play any song in any key (as long as you know where to put your fingers). It’s harder to play, but it puts all of the musical options at your fingertips. Literally.

Note in the photo of the cigar box guitar above, how the frets proceed up the neck towards the guitar body, with a slightly smaller space between each one. This is a chromatic fretboard, and it can be used to  play pretty much any song in any key.

Now, how Diatonic (Dulcimer) Fretting is different from Chromatic…

There are various other fretting layouts that have been used throughout the history of stringed instruments, but the most common variation to the chromatic style discussed above, is based on what is called the diatonic scale. This style of fretting is sometimes called “dulcimer fretting” because it is most frequently seen on dulcimer-style instruments.

Basically, in diatonic fretting the sharps and flats are left out, leaving only natural or “whole” notes. Think of the “DO RE MI” scale that kids learn. That is the diatonic scale, just the key notes of the scale with no sharp or flats in there to bung things up.

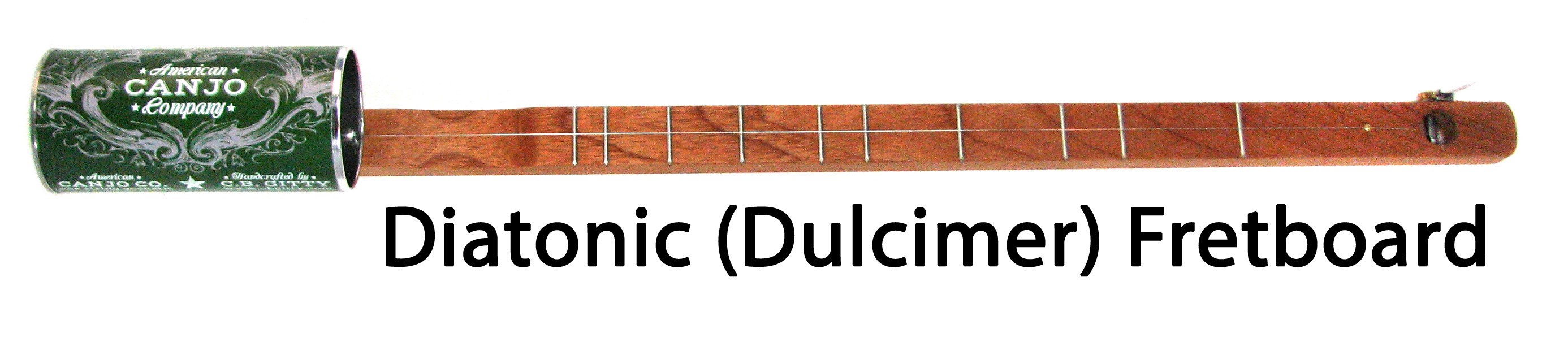

Check out the frets on the American Canjo Company canjo above. Notice how there are wider gaps between some of the frets, than there were on the chromatic fretboard above? That is because some of the frets have been left out – the frets that would have allowed the sharp and flat notes to be played.

The result is a fretboard that allows you to play DO-RE-MI-FA-SO-LA-TI-DO as you move up the neck one fret at a time. Using a diatonic fretting style can make it a lot easier to play basic songs, since there are less frets (and therefore notes) to choose from. The downside is that you are pretty much playing in one or two keys, and if the song you are playing happens to include a sharp or flat note that is not in the basic scale, you just won’t find it on your fretboard.

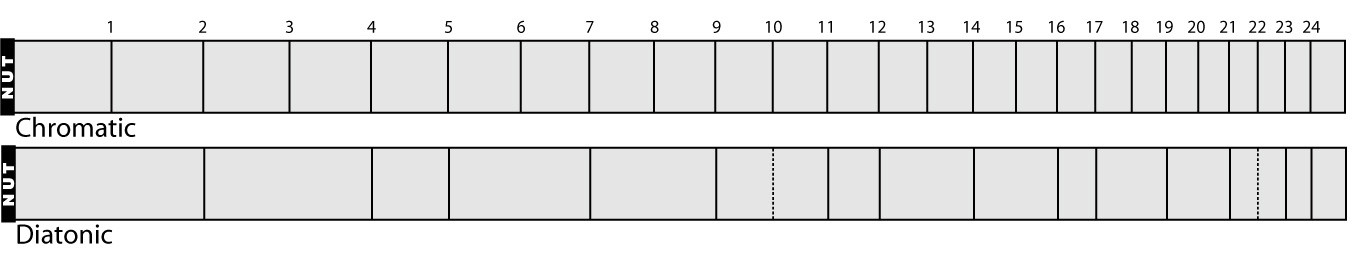

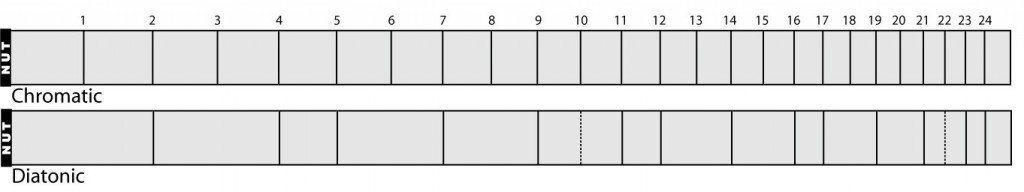

Illustration of Chromatic and Diatonic Scales

The graphic above gives you a side-by-side comparison of chromatic and diatonic fretboards of the same scale length. As you can see, on the diatonic fretboard some of the frets have been left out. We’ll discuss the dashed line frets (#10 and #22) below.

So here it is in a nutshell: to create a diatonic (dulcimer) fretboard, just start with a chromatic fretting template and leave out these frets: 1, 3, 6, 8, (10), 13, 15, 18, 20, (22).

Finally, some top-secret high-tech advanced stuff: the Blue Note

OK now about the dashed lines on frets #10 and #22. Adding that fret gives you what is often called the “blue note” of the dulcimer scale. To be technical, it is the flatted seventh note of the scale, and it lets you do two things:

  1. It lets you add a blues-style note to your songs, which can be a nice effect that gives you that immediately recognizable bluesy feel. Having this “blue note” in the scale is necessary to play a number of popular songs. It is certainly not used in the majority of popular songs, but it is used in a cool and important minority.
  2. On a more technical note, it lets you play in two different keys on the same instrument. Not to get too involved, but if you start your “do re mi” scale with the open (unfretted) string, and go up the fretboard (skipping the blue note), that is one key. If instead you start at the THIRD fret, and go up the scale, playing the blue note but skipping the one after it), that is a different key. So if your instrument had one string and that string was tuned to the key of “C”, starting at the third fret would be the key of “F”.

So just by adding two extra frets, at the 10th and 22nd positions, you can effectively double the versatility of an instrument. On the downside, having that blue note on there does give you one more potential wrong note to hit, and the fact that it is not in the major “do re mi” scale of the instrument means that if you do hit it by accident, it will sound more discordant than the other notes on the instrument.

If you are uncertain whether or not to include the blue note frets, a good plan would be to not put them on your first build. Get used to playing the instrument with the diatonic fretting. If you feel you want to take your playing a little further, then build another one (or add the extra frets to your existing one, and go from there.

In summary…

Hopefully this has given you a good idea of what diatonic/dulcimer fretting is, and why you might use it. To put it most simply, diatonic fretting makes an instrument easier to play, but less versatile overall. If you were building for an experienced musician used to guitars, you probably wouldn’t want to give them one with diatonic fretting. But if you are building an instrument for folks who don’t know how to play, or for kids, or elders, or just the general public who want to be able to quickly pick out a tune, diatonic can be a good option.

Related Entries

26 thoughts on “Diatonic (Dulcimer-Style) Fretting – What it is, How and Why to Use It”

  1. It seems to me that making the dulcimer chromatic instead of diatonic, is making it into a three(or four) string guitar.

  2. Terrific question, Norman. The bridge is slanted to accommodate the varying gauges of strings. This article about scale length will help to answer your question with more depth: https://www.cbgitty.com/news/what-is-scale-length-why-does-it-matter/
    As a preview from the article…
    Compensation
    Explaining compensation and intonation here presumes action (a.k.a. string height, discussed later in this article) well-suited for fretted CBG play.

    Look at your CBG neck from the side. Next, fret the lowest (thickest-gauge) string at the 12th fret.

    When pressed to the fretboard, the string stretches.

    That stretching can result in a note with a sharper pitch than intended.

    This holds especially true for heavier-gauge strings.

    To compensate for string-stretching, bridges are often set at an angle (as opposed to perpendicular to the strings) with a little more length added to the heavier than the lighter strings.

    For that reason, you can see how scale length is a little more complicated than a single measurement.”
    If you have further questions, please feel free to reach us at support@cbgitty.com. We’re happy to help.

  3. Why is the bridge of a strumstick slanted. This would seem to interfere with the formula used to come up with the fret spacing. Also, since slanting the bridge changes the scale length, which one should be used to calculate fret placement?

  4. I recently purchased a 4 string kit dulcimer. I wanted to learn to play an instrument but I think the frets have not been placed in the usual manner. After number 6 the spacing is unlike any I’ve seen online. Thoughts?

  5. Hello, Nigel. Thank you for asking! Here are a few videos of Ben “Gitty” Baker explaining and playing canjos which, in this case, use diatonic fretting.
    VIDEO: The Essential Canjo – Part 1 – Introduction
    VIDEO: The Essential Canjo – Part 2 – Anatomy of a Canjo
    VIDEO: The Essential Canjo – Part 3 – How to Play, Tune & Read Tablature
    VIDEO: The Essential Canjo – Part 4 – Advanced Playing Techniques
    That’s a pretty good place to get started. But please feel free to ask any questions you have. Drop us a line at support@cbgitty.com. We’re always happy to help!

  6. Marker dots are there to indicate a change in octave. On a standard guitar they are placed on frets 3-5-7-9-12-15-17-19-21-24.

    It will not be possible to get them all, as one of the frets is omitted between Chromatic and Diatonic. For the others, simply compare the fretboard on your dulcimer with that of a chromatic instrument and copy over.

    There are no rules here, so you can also put them where you will find the most use out of them.

  7. I have the fret slots cut. What I meant is the fret markers which I intend to do with mother of pearl dots.

  8. This will depend on your scale length.

    We have a free Fret Spacing Calculator right here on the site. It will allow you to enter what scale length you desire and where each fret will be, including which frets to leave out for Diatonic Fretting.

    C. B. Gitty also has a number of templates that can help make this process even easier.

  9. I am building my first dulcimer with diatonic scale with 17 frets. Where should fret markers be placed?

  10. Hey there Xavier!

    There does appear to be an error in the spreadsheet that we are working to fix. The blue notes are located at the 11th and 23rd frets in this case. Sorry for the confusion!

  11. Hi Gitty,
    Your site is really great ! I’m working on a new CBG, but I’m a bit puzzled by the fret system. In that article, blue notes are at 10th & 22th positions, but fret calculator (another great stuff !) indicates 13th, 23th and 35th positions, also indicated with a pair of ‘*’. But first ‘**’ is on 11th position. So what would be the right 1st position: 10th, 11th or 13th ? And second is 22th or 23th ? 35th is a bit far 😉
    Anyway go on with amazing site !

  12. Hello C.B. and the rest of the crew at the Canjo and Diddley Bow shop:

    How about releasing a bass canjo and or diddley bow? Something with a 27-30 inch scale?

    Best of notes,

    Gordon Cooper
    Bremerton WA

  13. Hi, extremely useful article. Just a quick question, the dotted line at 5 1/2 is the “mythical” extra 6 1/2 fret people have been adding to dulcimers for some time now? Thanks again.

  14. Absolutely, especially on 3-stringers. These sort of guitars are often called “Strummers” or the like, because they are based on the (trademarked) “Strumstick” invented by Bob McNally back in the early 80’s. It is a 3-string, diatonically fretted instrument that was one of the early forerunners of the homemade/handmade music movement.

  15. Oh my GOSH! This is SO helpful!! I just finished building a dulcimer (helping my daughter with her Appalachian Music Class). I was wondering why “Ti” was sounding so flat…. It’s a blasted blue note!! Once I started it at the 3rd fret, it was right on. I triple checked the fretboard before actually cutting… Could not figure out why that one note was so flat. Makes perfect sense now. Thanks so much for the enlightenment!

  16. Often the bridge is the bottom/back of the can, though more advanced methods are possible. The vibrating length of the string is always what determines the scale length, but yes when the can bottom is the bridge it is measured from there to the nut. The total length of ours are usually 28 inches though that can vary depending on the style.

  17. Not knowing anything about the canjo and reading your article above, has me interested. So you stated the scale length is 24.5″. So my question is, does a canjo have a bridge? or what is the bridge on it? Is it the end of the can that creates the bridge? And the distance of that end to the nut is your scale? How long is is a Canjo? Thanks for your time. Thanks Ray K, P.S. Thanks for posting the new song tabs for CBG’s.

  18. Diatonic fretting can be used with pretty much any scale length. The scale length of the canjo shown in the article photo is fretted to a 24.5 inch scale. The scale of the chromatically fretted cigar box guitar is 25″. The scale of the instrument in the first photo is about 21″. I cannot remember what the scale is of the side-by-side chromatic/diatonic diagrams.
